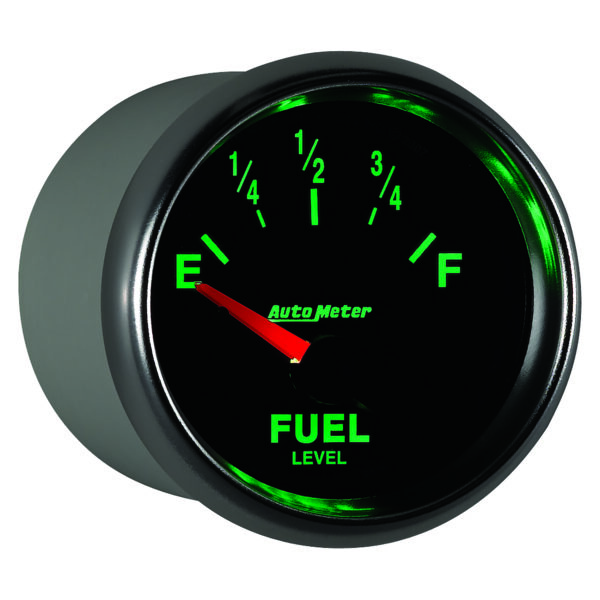

AUTOMETER Fuel Level Gauge 2 1/16″, 240° To 33°F, Elec, Gs

£100.30 £100.30 Inc. VAT (£83.58 Exc. VAT)

2-1/16″ FUEL LEVEL, 240E 33 F, SSE, GS

SKU: ATM3816 Categories: , Tag: Brand:

Description

Autometer Logo

AUTOMETER Fuel Level Gauge 2 1/16″, 240° To 33°F, Elec, Gs

One of the most necessary gauges in a dashboard, AutoMeter makes it easy by offering 5 different resistance range configuration to match your existing fuel sending unit. Available in 0-90 ohm (GM mid 60’s to mid 90’s), 0-30 ohm (early GM), 73-10 ohm (pre 90’s Ford and Chrysler), 16-158 ohm (later model Fords) and 240-33 ohm (aftermarket senders such as the AutoMeter 3262). Our patented air core meter movement receives extra dampening to help combat the effects fuel slosh in non-baffled tanks.

Here at Serck Motorsport, we supply and distribute AutoMeter products for your performance race car having used them ourselves!

Overview

  • AutoMeter Part: 3816
  • Modern green LED through-the-dial lighting provides clear visibility during nighttime use
  • Works with 240E/33F ohm senders, including AutoMeter 3262
  • 12 and 16 volt compatible, well-suited with nearly every street car or race car electrical system
  • Gauge kit includes mounting hardware and detailed instructions for installation
  • AutoMeter’s race proven air-core electric instruments provide quick and accurate readings

Additional information

Weight 0.23 kg
Dimensions 11.43 × 11.43 × 12.07 cm
Dial Colour

Black

Lens Style

Flat, Clear

Bezel Colour

Bright Anodized

Bezel Style

Super Bezel

Size

52.4mm / 2-1/16"

Cup Hole Size

52.4mm / 2-1/16"

Outer Bezel Diameter

2-1/4"

Lighting Type

LED

Lighting Colour

Green

Pointer Colour

Fluorescent Red

Movement

Electric, Air-Core

Gauge Type

Fuel Level

Range

240 Ω Empty / 33 Ω Full
